Generator : Ring safe

Kind of M/C GENERATOR ( 45 KVA. )
Inventory No. 45-14
Serial No. 3873367
Dimention (W x L x H) 145 x 240 x 210 cm.
Purchase Date 6/11/2013
Engine No. 435651
Trade Name DENYO DCA 45 ESI
Weight (2 Jan 14Kg.) 2,000 Kg.
                                                                         : 6 Nov 13
Engine  No.  : ISUZU 435651
Trade Name : DENYO DCA 45 ESI
Weight ( Kg. ) : 2,000 Kg.

ALTERNATOR DCA-45ES
Frequency                                                      Hz 50 60
Output Rating (kVA) Continuous 37 45
Standby 38.9 47.3
No.of Phases 3-Phase,4-Wire
Rated Voltage                                                 V 2 Dual Voltage
Power Factor 0.8 (Lagging)
Voltage Regulation                                       % Within ± 0.5
Excitation Brushless,Rotating Exciter (With A.V.R.)
Insulation Class F
ENGINE ISUZU
MaKe&Model BB-4JG1T
Type Inlined,Direct Injected,Turbocharged
Output Rating PS/rpm 46.5/1500 56/1800
Bitmap Bitmap



34.2/1500 41.2/1800
No.of  Cylinders-Bore X Stroke               mm 4-95.4 X 107
Piston Displacement                                    L 3.059
Fuel ASTM No.2 Diesel Fuel or Equivalent
Fuel Consumption                                      L/h 6.3 7.8
Lube Oil Sump Capacity                           L 10
Coolant Capacity                                        L 10.9
Battery X Quantity 95D31R X 1
Fuel Tank Capacity                                    L 100

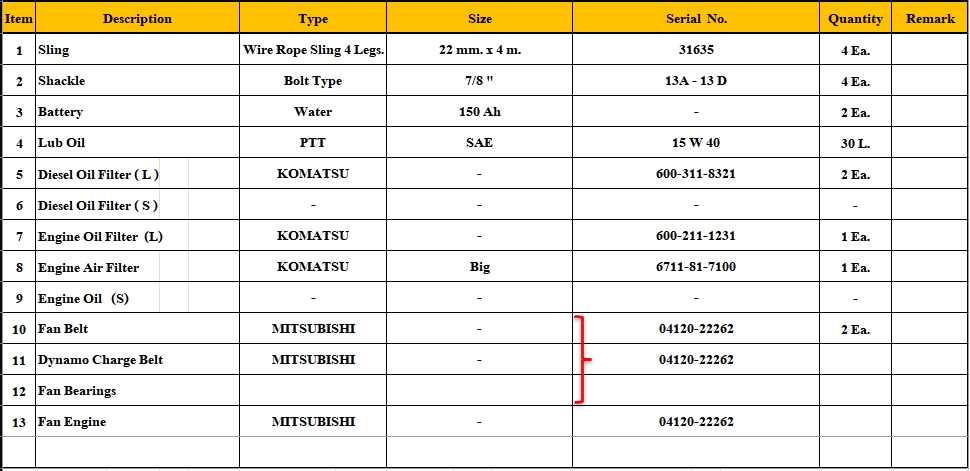

Item Description Type Size Serial No. Quantity Remark
