Air Compressor : Rig safe

Kind of M/C AIR COMPRESSOR
Inventory No. AC 390-36
Serial No. -
Dimention (W x L x H) 170 x 315 x 230 cm.
Purchase Date
Engine No. ISUZU 4BG1
Trade Name AIRMAN -( 390 CFM )
Weight (2 Jan 14Kg.) 3000 Kg.
Specification
Engine  Model  ISUZU DD-4BG1T
Compressor Model PDS390S-4B 1SC-4B1, SD-4B1
Type Compressor  Single - Stage Oil Cooled, Scarew type compressor
Free air delivery m 3 / min  11,Working Pressure  : 0.7 Mpa
Lubricating System Forced Lubrication by Compressor Pressure
Driving System Direct driving with rubber  coupling
Receiver tank capacity m3 0.098
Lub oil Capacity Engine L 13 Liters
Lub oil Compressor Capacity 51 Liters Total Displacement  : 4.329 L./S
Air Outlets 50A (2") x 1pc, 20A (3/4" )x 4 pcs
Engine Type 4-Cycle,water-cooled,direct injection type with turbo charged
No. of Cylinder Bore Stroke 4-105 mm. x 125 mm. Battery  : 24 V.
Rated Output ps (kW)rpm kW/min-1  : 80.9/2,400
Coolant Capacity 13 Liters Fuel Tank Capacity   : 115 L.

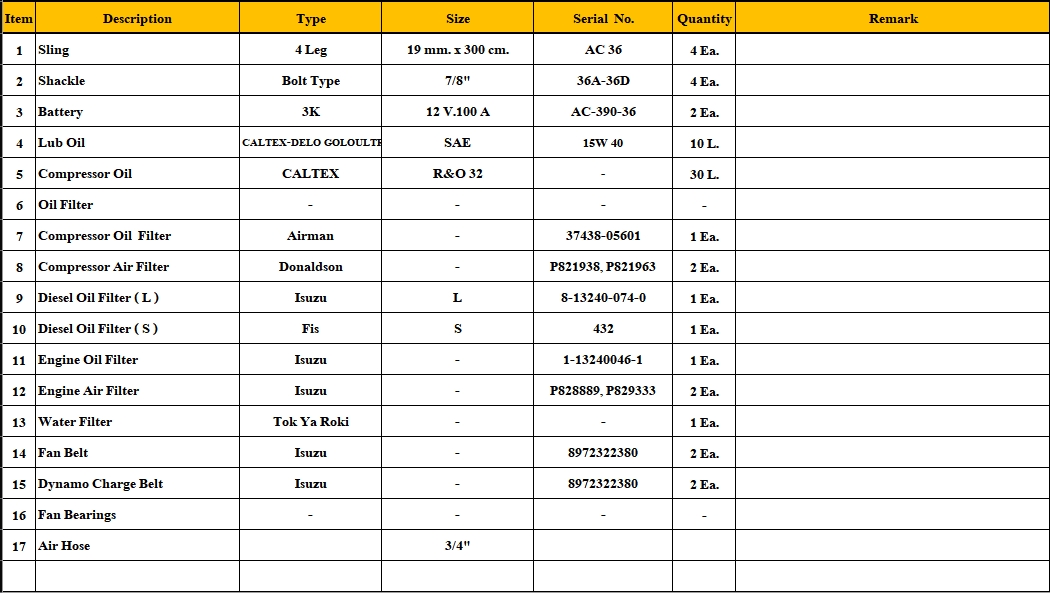

Item Description Type Size Serial No. Quantity Remark
1 Sling 4 Legs. 19 mm. x 300 cm. AC 36 4 Ea.
2 Shackle Bolt Type 7/8" 36A-36D 4 Ea.
3 Battery 3K 12 V.100 A AC-390-36 2 Ea.
4 Lub Oil CALTEX-DELO GOLD ULTRA SAE 15W 40 10 L.
5 Compressor Oil CALTEX R&O 32 - 30 L.
6 Oil Filter - - - -
7 Compressor Oil Filter Airman - 37438-05601 1 Ea.
8 Compressor Air Filter Donaldson - P821938, P821963 2 Ea.
9 Diesel Oil Filter ( L ) Isuzu L 8-13240-074-0 1 Ea.
10 Diesel Oil Filter ( S ) Fis S 432 1 Ea.
11 Engine Oil Filter Isuzu - 1-13240046-1 1 Ea.
12 Engine Air Filter Isuzu - P828889, P82933 2 Ea.
13 Water Filter Tok Ya Roki - - 1 Ea.
14 Fan Belt Isuzu - 8972322380 2 Ea.
15 Dynamo Charge Belt Isuzu - 8972322380 2 Ea.
16 Fan Bearings - - - -
17 Air Hose 3/4"
