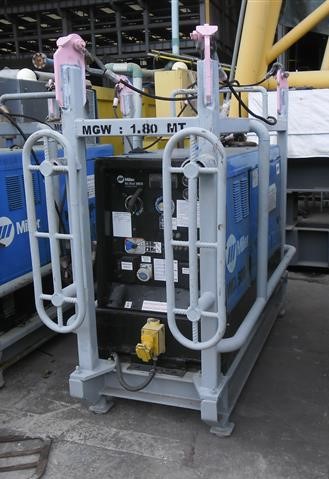

Welding Machine : Diesel

Kind of M/C Welding Machine
Inventory No. WD 600-124
Serial No. MD320017E / 08885232
Dimention (W x L x H) 110 x 230 x 190 cm.
Purchase Date 14 Jul 14
Engine No. DEUTZ F3L912
Trade Name MILLER / Big Blue 600X CC
Weight (2 Jan 14Kg.) MGW. 1800 Kg.
  Purchase Date : 14 Jul 14
  Engine  No.    : DEUTZ F3L912
  Trade Name : MILLER / Big Blue 600X CC
  Weight ( Kg. ) :  MGW. 1800 Kg.


Welding Mode   : Big Blue 600X CC : STICK / TIG
      : CC/DC  , CV/DC ( CC/CV Models Only )
Weld Output Range : 65-600 A ( CC Models ) 20-600 A ( CC/CV Models )
      : CV/DC (CC/CV Models Only ) : 14-40 V
Rated Welding Output : 600 A,  30 Volts DC 40% Duty Cycle
IFC Rating     : 500 A, 40 Volts DC 100% Duty Cycle
      : 550 A, 40 V. DC 60% Duty Cycle
Max.Open-Circuit Voltage : CC : 95 VDC ,  CV/DC  : 56 VDC
Generator Power Rating : Single-Phase, 4 kVA/kW, 34/17 A, 120/240 V   AC 50/60 Hz
Engine     : Deutz F3L912  Air-Cooled,  3-Cylinder, 41.5  HP Diesel
Battery      :  12VDC Battery & Starter
Fuel Capacity   : 25 gal ( 95 L )
Engine Oil      :  9.5 L.
Speed ( RPM )   : High idle : 1850 RPM, Full Load : 1750 RPM
Automatic Engine S/D : High Coolant Oil  Engine 100-115 C°
      : Temperature  132 C°
      : Low Oil Prerrure 10 psi
Item Description Type Size Serial No. Quantity Remark
1 Sling Wire Rope Sling 4 Legs 16 mm. x 180 cm. 4123 4 Ea.
2 Shackle Bolt Type Anchor 3/4” SWL. 4.75 Mt. F936 to F938,F947 4 Ea.
3 Battery - 12V. : 60 A. WD 600-124 1 Ea.
4 Lub Oil PTT SAE 15W40 8.5 L.
5 Oil Filter DEUTZ BIG 0118 2001 1 Ea.
6 Diesel Oil Filter ( L ) Donaldson BIG P550587 4 Ea.
7 Diesel Oil Filter ( S ) DEUTZ Small 11821917 4 Ea.
8 Engine Air Filter Donaldson Small P822768 1 Ea.
9 Water Filter FUSO BIG ME091412 8.5 L.
10 Fan Belt Mitsubishi 9.5 x 1500 1570-1500 1 Ea.
